Home Made Test Equipment

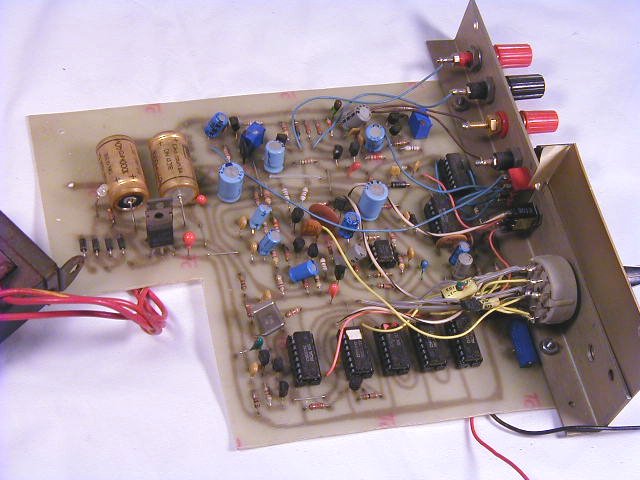

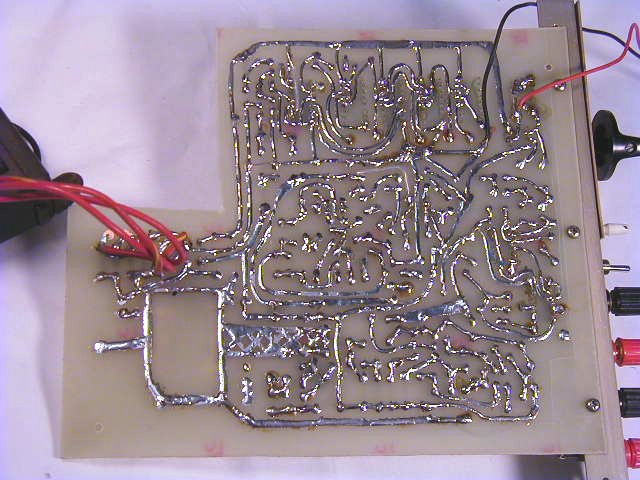

This is the Reactance Measurement Set from Popular Electronics. It's still waiting for a cabinet.

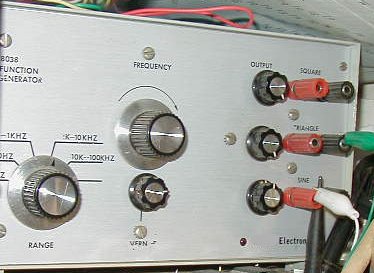

This function generator is based on the ICL8038. It goes from 1 Hz to 100 Khz, with simultaneous sine, square, and triangle outputs.

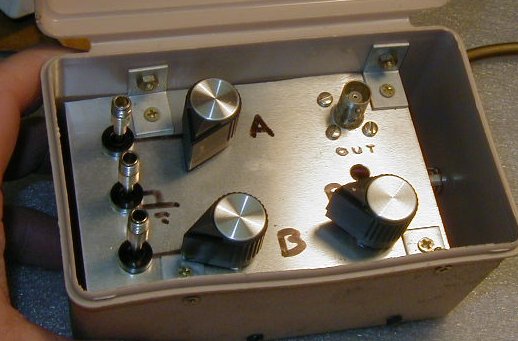

This electronic scope switch allows viewing two traces on a single channel scope.

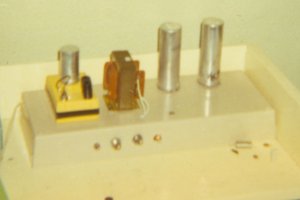

When I was stationed in Germany, I didn't have much to work with, so I used what I had. This power supply was built on a plastic tray. The main section was about 12V output, and the yellow part was a 220VDC supply built into an old transistor radio case.
